SMD 3528 SMD LED Strip Light * White PCB Dimension: 500*8*0.2mm Model Number Emitting color Voltage LED Qty Wave-length Power Lumen Angle Current BLS-3528-60R Red DC12V 300 620-625nm 24W 300-400 120° 2A BLS-3528-60Y Yellow DC12V 300 590-595nm 24W 300-400 120° 2A BLS-3528-60B Blue DC12V 300 465-470nm 24W 150-300 120° 2A BLS-3528-60G Green DC12V 300 515-520nm 24W 800-1000 120° 2A BLS-3528-60W White DC12V 300 3000-9000k 24W 1000-1300 120° 2A *Description: 1. Light source: SMD3528 300 LEDs per 5 M 2. Waterproof : IP67. Made with Half silicon tube, covered by epoxy resin. 3. Operating Voltage: DC12V 4. Emitting color : red, green, blue,yellow, warm white(3000-4500K), pure white（5000-6500K），cold white（7000-9000K） 5. Viewing angle : 120 degrees 6. 3M adhensive tape in backside, every 3 leds cuttable. 7. Electrostatic Discharge : >1500 V 8. Operating Temperature : -25 ~ +60 °C 9. Storage Temperature : -40 ~ +80 °C *Applications: 1). Architectural decorative lighting 2). Indoor Decoration 3). Auditorium walkway lighting 4). Stairway lighting & Decoration 5). Border/contour lighting 6). Channel letter lighting 7). Emergency & Security lighting 8). Cove lighting 9). Shop-window decoration.

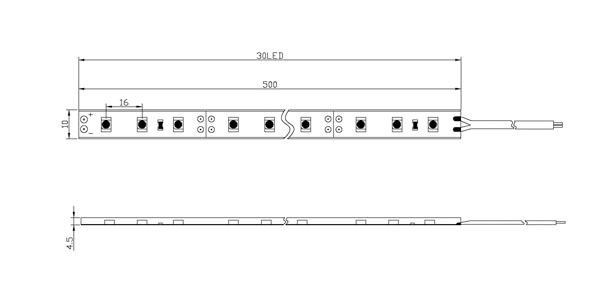

Specification:
Packing:
